Explanation of BSM inverse distortion solution process

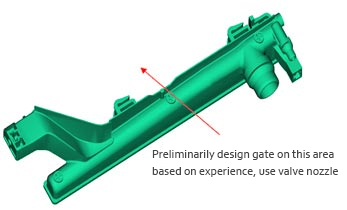

After analysis of part structure, preliminarily confirm the gate location

Property of plastic material (material used for production)

Flow optimization


Mould design


Molding parameter optimization





Filling and holding pressure parameter optimization (through adjusting injection time, injection speed, changing holding place setting holding pressure curve.

Cooling system optimization


Idea process parameter


Design cooling according to idea molding parameter, run complete analysis (cooling+ filling+ holding pressure+ deformation) to get ideal (close to reality) distortion data






To proceed compensation design for part deformation according to pre-deformation data lines, then analyze the part again and verify if the deformation value meets the requirement to achieve target effect.
